Fontana leveller machines

We can offer a complete range of levellers to suit your requirements. Details of some of the series available can be found below. We also supply a complete laser system to enable you to grade economically and accurately.

MIG-PRO

MIG-PRO

Possible uses: Levelling of greenhouses, sheds, yards, flowerbeds, tennis courts Technical features:  working width: 1.5/2/2.5m  weight: 530/700 kgs  required HP: 15/70  blade height: 62cm  hydraulic tilt (standard)  mechanical adjustment incidence of the blade (standard)  independent hydraulic system (option)

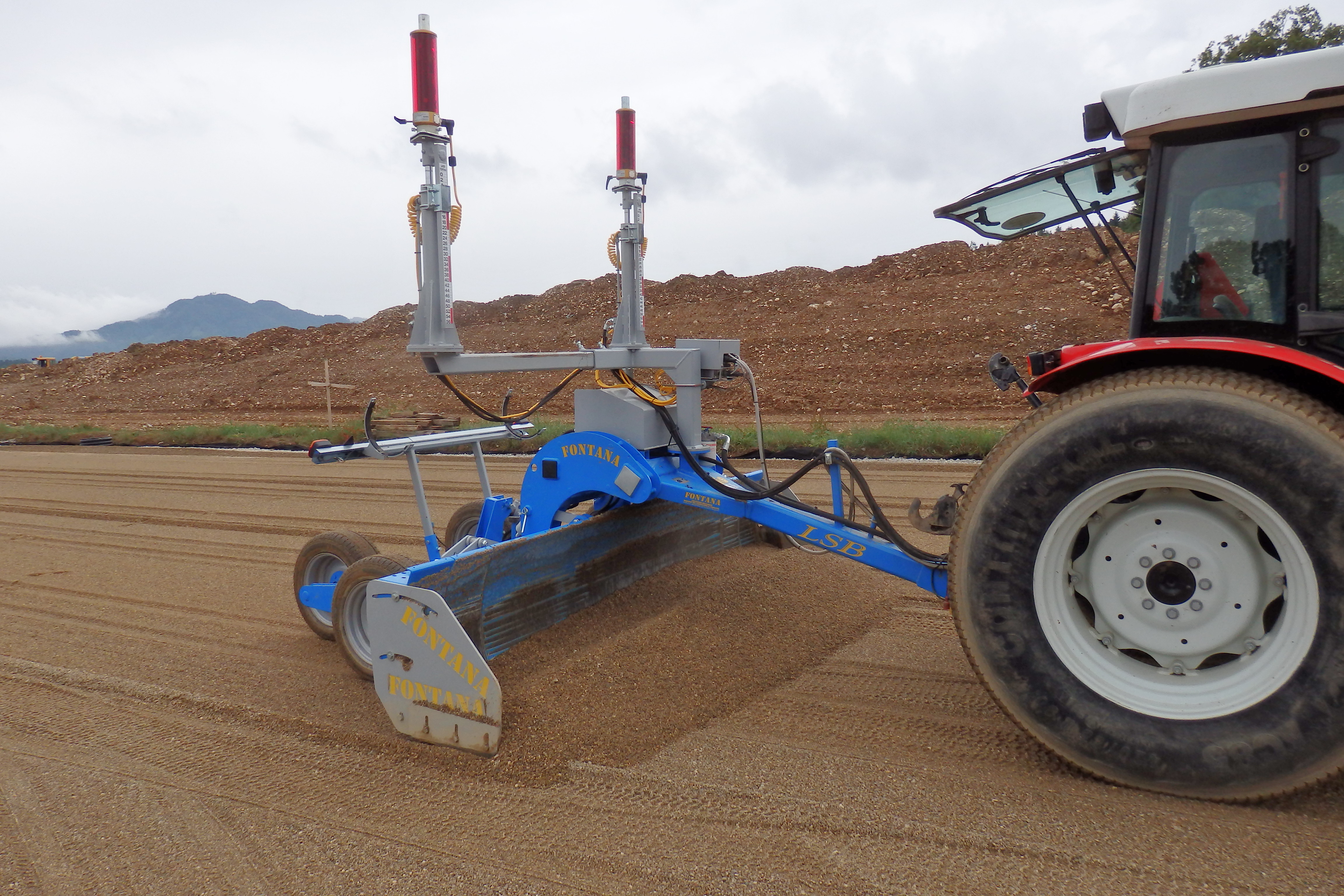

LSB-PRO

LSB-PRO

Possible uses: Levelling works in agriculture, sports grounds, squares, roads Technical features:  working width: 2.36/2.86/3.36m  weight: 1,000/1,500 kgs  required HP: 50/100  blade height: 70cm  mechanical adjustment incidence of the blade (standard)  grader (option)  second mast (for second receiver (option)  independent hydraulic system (option)

LSE

LSE

Possible uses: Levelling works in agriculture, sheds, sports grounds, squares, roads Technical features:  working width: 2.36/2.86/3.36m  weight: 2,000/2,500 kgs  required HP: 100/170  blade height: 95cm  mechanical adjustment incidence of the blade (standard)  hydraulic folding of the blade extension modules (standard)  telescopic trolley with standard hydraulic tilt

RICE

RICE

Possible uses: Levelling works in agriculture, sports grounds and roads Technical features:  working width: 4/4.5/5/5.5/6m  weight: 2,700/3.600kgs  required HP: 100/250  blade height: 95cm  hydraulic adjustment incidence of the blade (standard)  telescopic trolley or trolley with arms or with central fulcrum  second mast for second laser receiver (option)

LSR

LSR

Possible uses: Levelling works in agriculture, squares, roads Technical features:  working width: 4/4.5/5/5.5/6m  weight: 3,500/4,700kgs  required HP: 120/350  blade height: 110cm  hydraulic adjustment incidence of the blade (standard)  telescopic trolley or trolley with arms or with central fulcrum  second mast for second laser receiver (option)  grader (option)

MAXI

MAXI

Possible uses: Levelling works in agriculture, earthmoving works, roads, airports Technical features:  working width: 4/5/6/7m  weight: 5,000/6,500 kgs  required HP: 200/400  blade height: 130cm  hydraulic adjustment incidence of the blade (standard)  Trolley with arms or with central fulcrum  Second mast for second laser receiver (option)  grader (option)

SILVER BLUE

SILVER BLUE

Possible uses: Levelling works in agriculture, large earthmoving works, airports Technical features:  working width: 6/7/8m  weight: 7,800/9,000 kgs  required HP: 300/700  blade height: 140m  hydraulic adjustment incidence of the blade (standard)  trolley with arms or with central fulcrum  Second mast for second laser receiver (option)
